PLCs from IDEC Corporation Keep Trains Running



IDEC Corporation (USA) - PLCs from IDEC work with traffic light controllers to help light rail trains pass safely through intersections. By Thai Nguyen, IDEC Corporation.

The City of Milpitas, California, wanted to integrate its new light rail system (Figure 1) with traffic light controls at five four-way intersections. The City wanted the trains to be able to pass through each intersection safely without slowing or stopping for auto traffic in normal operation. They also wanted to be able to tell the trains to stop when dictated by certain traffic signal and pedestrian conditions. Ideally, the new automation system would sense the approach of a train, change the traffic signals to stop cross traffic, and allow the light rail train to pass through without slowing.

Unfortunately, the existing traffic light system could not accommodate the trains, so a new automation system was needed that could perform the required functions. The City of Milpitas purchased five IDEC MicroSmart Pentra PLCs with digital I/O modules, interfaced them to the traffic light controllers at each intersection, and achieved objectives. The City of Milpitas chose the Pentra PLC because it was reliable, cost-effective, and capable of performing the required control. The PLC also had an Ethernet port to allow remote monitoring and communication, and the capability to expand as necessary, two important features.

Sensing Trains:
An approaching train activates the advance detector loop sensor, which sends a signal to the PLC. The PLC delays for 15-25 seconds, depending on the time before the train is due to arrive at the intersection (Figure 2), which is a function of the train’s speed and the sensor’s distance from the intersection. The PLC instructs the traffic light controller to stop vehicular traffic through the intersection. As soon as the train hits the release loop sensor on the other side of the intersection, the PLC instructs the traffic signal controller to resume normal operations.


Figure 2: The light rail system crosses five intersections in Milpitas, where IDEC PLCs work with the traffic light control systems to allow trains to safely pass through.

The PLC also detects all the traffic light changes made by the traffic light controller. If it sees that the traffic control system cannot change the lights in time—perhaps because pedestrian sensors detect the presence of people in the crosswalks—the PLC will send an output to a Stop signal on the track to stop the train via a Red-Yellow-Green train light. Each train has a human operator, who will manually stop the train when the red light appears.

If a train is coming from the opposite direction, the PLC will wait until both trains clear the intersection before allowing the traffic light controller to resume normal operation. The PLC can stop both trains if traffic congestion or other problems make it impossible to stop vehicular traffic.

After the PLC serves the trains, it waits until the traffic controller has served the opposing vehicle phases or directions. The PLC also monitors how long the red lights at the intersection have been on. As determined by a software algorithm, it can instruct the traffic light controller to release a lane that has been red for too long. This function is turned on during peak traffic hours by the PLC time clock.

Preparing the PLCs:
The MicroSmart PLC is an open architecture device with 16K words user program capacity. It allows a user to store, transfer or upgrade the program memory using a miniature flash card. The PLC can handle up to 480 digital I/O, 42 analog I/O and up to 512 remote I/O using the Interbus-S network. The Milpitas system required 52 discrete 24Vdc I/O, which were handled by IDEC MicroSmart discrete I/O modules. Each intersection has a PLC, input modules, output modules, and associated components.

Systems integrator Angelo Lombardo programmed the PLCs using IDEC’s PC-based Automation Organizer Suite, primarily using the WindLDR ladder logic software, which is part of the suite of available programming tools. WindLDR has a built-in simulation mode, which allowed Lombardo to completely test the logic prior to installing the PLCs at the intersections.

The City of Milpitas’ traffic department installed the five PLCs in the same enclosures housing the traffic light control system (Figure 3), wired the track sensors to the PLCs, and wired I/O from the PLCs to the traffic control systems.

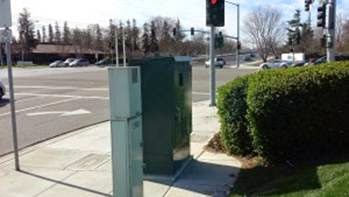

Figure 3: The new automation system was installed in the outdoor enclosure housing the traffic light controller.

Initial testing of the system was done late at night when minimal vehicular traffic was present, and startup went very well. Thanks to the software simulation, the PLC performed perfectly, and the only difficulties involved sensors and wiring issues.

Commissioning and start-up also went very smoothly. Even the required rewiring was not a major issue because the new PLC I/O used the same wiring pins as the previous discrete logic box. A spreadsheet was provided showing the pin, function, and termination point on the PLC—further simplifying the required rewiring.

After startup and commissioning, the only changes made to the program were to enhance traffic flow. These changes were related to train delay times, locked detector timers and the time clock.

Because the IDEC PLC uses a miniature flash card to store program memory, it was a simple matter to download a fresh copy of the software for each of the PLCs (Figure 4). This was done by changing the program at the first PLC, removing the flash card from the PLC, and installing the flash card at each of the other four PLCs in turn so that each could write the new program to its memory.

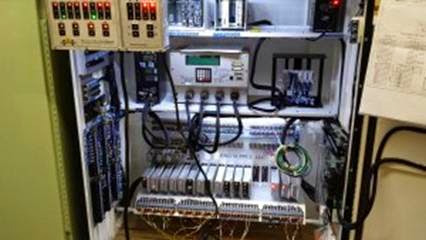

Figure 4: The IDEC PLC is installed next to the traffic light controller and connected to sensors and to the controller via 24Vdc I/O.

One interesting aspect of the installation was how easy it was to program the PLC to perform traffic light functions, and how difficult it was to modify the existing traffic light controllers. This suggests the possibility of someday replacing the traffic light controllers with PLCs, which would add flexibility to the traffic control system, as well as improve communications from the control system to the central traffic control and monitoring system.

While the PLCs don’t actually change the vehicle lights, there is no reason why they couldn’t. Although literally millions of such traffic light controllers are being used around the world, it’s quite possible that PLCs could take over many tasks in that industry—especially if a city plans to add advanced functions, such as accommodating light rail train service.
