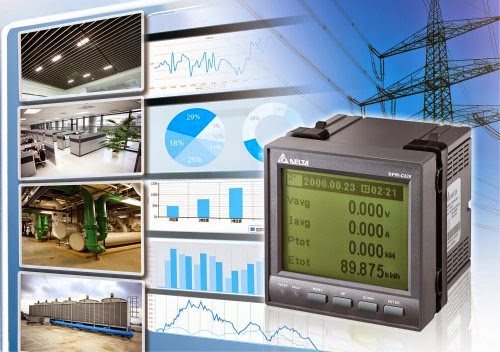

Delta’s New Power Meter DPM-C530A Series



Delta Electronics, Inc. (Taiwan) - Delta’s Power Meter DPM-C530A Series is part of the Delta’s global automation solutions. It enables the monitoring of power quality and energy consumption, which is the first step to reducing operational costs. The DPM-C530A Series provides precise measurement of various power parameters including three-phase current, voltage, power factor, active and reactive power, as well as apparent power. Harmonics, total harmonic distortion and up to 31st individual harmonic distortion, unbalance can be measured with superior accuracy as well as bi-directional electrical energy and power parameters, which meet Class 0.5S accuracy for active energy of IEC62053 and CNS14607 standards.

Furthermore, it is equipped with an over-limit alarm and history logs storage for real-time monitoring purposes, and supports power quality measurement, including total harmonic distortion, up to 31st individual harmonics, voltage and current unbalance. The DPM-C530A is the perfect match for energy management systems and facilities that have high requirements for power quality control.

Applications are medium / low voltage power distribution panels, energy management systems and all types of production lines. It features a wide-screen LCD with high resolution. Its built-in 8Mbytes of storage enables up to 2 months of power and electrical energy measurement values for history analysis. It also records up to 500 alarm, the highest capacity in the industry.

The DPM-C530A Series is designed with an IP52 rating and CE safety approval.

Communication is easy thanks its built-in RS-485 communication port and capability of supporting Modbus RTU/ASCII. The DPM-C530A Series is designed to be seamlessly integrated into Delta´s comprehensive automation solutions, which include PLCs, Drives, Motors, HMIs, sensors, measurement systems, and many more products, making Delta a full-service provider for all automation needs.



For more information about the New Power Meter DPM-C530A Series from Delta Electronics click here.
