Pixus Offers New Development Embedded Chassis Platform with Removable Sidewalls

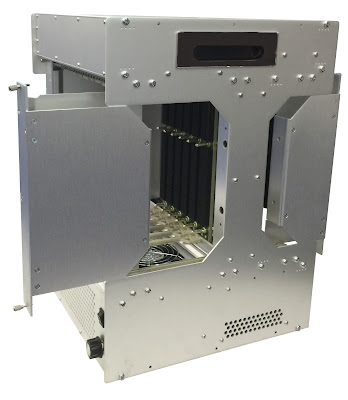

Pixus Technologies (Canada) - Pixus Technologies, a provider of embedded computing and enclosure solutions, now offers a development enclosure for 3U, 6U, or custom sized boards with sidewalls that can be removed. This feature allows a system to be enclosed for thermal testing and the walls to be taken out for ease of access to boards inside the chassis.

The VPXD1000R holds up to eight backplane slots at a 1.0” pitch. Pixus offers 3U and 6U backplanes in OpenVPX, CompactPCI Serial, VME64x, and legacy CompactPCI and VME designs. The card guides can be adjusted in .2” increments to accept various slot pitches. Further, Pixus offers removable conduction-cooled card guides. This allows IEEE 1101.2 conduction-cooled modules to be tested next to other air-cooled cards inside the same enclosure.

The Pixus development enclosure has removable sidewalls for both front pluggable cards and the optional Rear Transition Module (RTM) section. The unit has standard 600W or 1200W modular power supplies for a wide range of voltages and amperage levels commonly used in OpenVPX and other architectures. Customized versions or VITA 62 PSUs are also available. Pixus offers power interface boards per PICMG 2.11 and VITA 62 to accept various pluggable power supplies. The VPXD1000R also features an adjustable fan speed dial.

Pixus offers desktop, rackmount, and rugged SFF embedded enclosure systems for Eurocard-based, xTCA, and customized solutions. The company also provides components for embedded subracks and boards, as well as electronics cases for instrumentation.

About Pixus Technologies:
Leveraging over 20 years of innovative standard products, the Pixus team is comprised of industry experts in electronics packaging. Founded in 2009 by senior management from Kaparel Corporation, a Rittal company, Pixus Technologies' embedded backplanes and systems are focused primarily on ATCA, OpenVPX, MicroTCA, and custom designs. Pixus also has an extensive offering of VME-based and cPCI-based solutions. In May 2011, Pixus Technologies became the sole authorized North and South American supplier of the electronic packaging products previously offered by Kaparel Corporation and Rittal.

For more information about the New Development Embedded Chassis Platform from Pixus Technologies click here.
