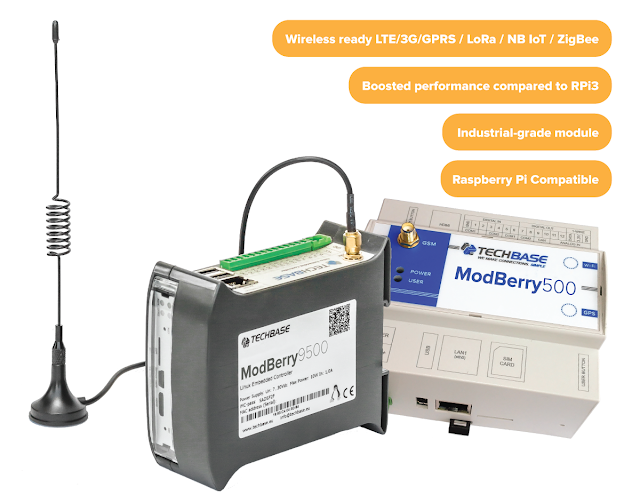

TECHBASE upgrades the ModBerry 500 Industrial Computer with CM3



TECHBASE Group sp. z o.o. (Poland) – ModBerry 500/9500 M3 is an upgraded ModBerry 500/9500 Linux-based industrial computer series, using latest Compute Module 3 from Raspberry Pi. ModBerry is a series of industrial computers which can be easily adapted to the needs by choosing from the available options.

Upgraded ModBerry industrial computer series use latest Compute Module 3, powered by Quad-core Cortex-A53 1.2GHz processor, 1024MB LPDDR2 RAM and 4GB Flash eMMC. The module increase the device’s performance up to ten times, maintaining low power consumption and optimal price of the solution. ModBerry features industrial protocol support, e.g. Modbus, M-Bus, SNMP, MQTT and the possibility to add new protocols with ease.



ModBerry 500 hardware modularity:
The main features of ModBerry Industrial Computers series are the extension capabilities to increase input/output number, add up to 4 internal wireless communication modems and modules, support additional features such as accelerometer or opto-isolation options.

ModBerry 500 series offers wide range of industrial interfaces e.g.: digital inputs/outputs, analog inputs/outputs, relay outputs, serial RS-232/485 ports, Ethernet, 1-Wire, CAN, USB 2.0, HDMI, LTE/3G/GPRS, NarrowBand IoT/LTE, GPS, ZigBee, WiFi, Bluetooth, LoRa and many more via extension modules.



According to TECHBASE Group, "Raspberry Pi based industrial computer ModBerry expands to new platforms, setting new trends on the industrial automation market. ModBerry series offers now a variety of new processing units, wider range of possible applications due to much higher performance than before. We introduced ModBerry M700 based on NanoPi platform, Intel-based ModBerry M1000 with UpBoard computing module and latest ModBerry 400 to complete Raspberry Pi platform with economical device for further upgrades with extension modules".

ModBerry remote management:
The iMod platform guarantees a quick start and full use of the ModBerry computer, without the need to write complicated software. One of the main advantages of the iMod platform is its ease of use and variety of available functionalities. Due to the available SDK, the platform can be extended with new, dedicated functionalities.

iMod can be installed directly onto ModBerry device or using external PC outside the installation (iModBOX). The third option is using dedicated hosting server to host the iMod software (iModHOST).



Another product is iModCloud software-service, which enables full control of ModBerry/iMod devices. Together they form a stand-alone solution – iModCloud Ecosystem, a combination of cloud services with web-based user interface and industrial devices, fully manageable remotely.

iModCloud can be hosted externally, using stable DELL servers to host the cloud service.(iModCloudHOST). For higher data security or depending on project features, iModCloud can be hosted internally, inside the installation (iModCloudBOX) hosted by the dedicated Mini-PC or from portable memory stick (iModCloudSTARTER).

For more information about the ModBerry 500 Industrial Computer from TECHBASE Group sp. z o.o. click here.
