Multi-touch in Widescreen Format: The modular ETT Panels from SIGMATEK



SIGMATEK GmbH & Co KG (Austria) – The ETT panel family from SIGMATEK is growing: With new, modular widescreen variants, the user has attractive multi-touch operating panels for demanding, modern visualization concepts.

The projective capacitive touch technology enables intuitive operation with multi-finger input, which can be used for more Safety in handling machines and equipment. For example, when two buttons must be pressed at the same time. And the widescreen display provides clarity, since there is plenty of space to arrange operating elements, features and contents.

The modular construction provides flexible application options. The ETT panels can be equipped with a connectible CPU or an HMI-Link unit. The CPU unit with EDGE2 Technology dual-core processor supports OPC-UA communication and has, depending on the model, 1 to 2 GB of internal program and data memory (DDR3 RAM) and 512 MB to 16 GB microSD memory. 2x Ethernet, 1x USB 2.0, 1x USB-OTG are standard interfaces. With the HMI-Link unit, the operating panel can be located up to 100 m from the control cabinet.

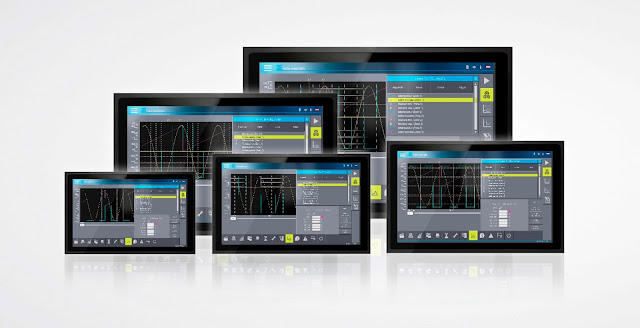

The multi-touch HMIs come in five different display sizes from 10.1 inches with a resolution of 1280 x 800 pixels to 21.5 inches with 1920 x 1080 pixels (full HD). Whether in vertical or horizontal format – the thin panels with an easy to clean glass front in IP65 protection are equipped for any situation.

The object-oriented engineering tool LASAL provides high comfort and flexibility with creating multi-touch applications.

Variants:
  • ETT 1034 – 10,1" (1280 x 800 px)
  • ETT 1234 – 12,1" (1280 x 800 px)
  • ETT 1534 – 15,6" (1366 x 768 px)
  • ETT 1834 – 18,5" (1366 x 768 px)
  • 2134 – 21,5" (1920 x 1080 px)



For more information about the New Modular ETT Panels from SIGMATEK GmbH & Co KG click here.
