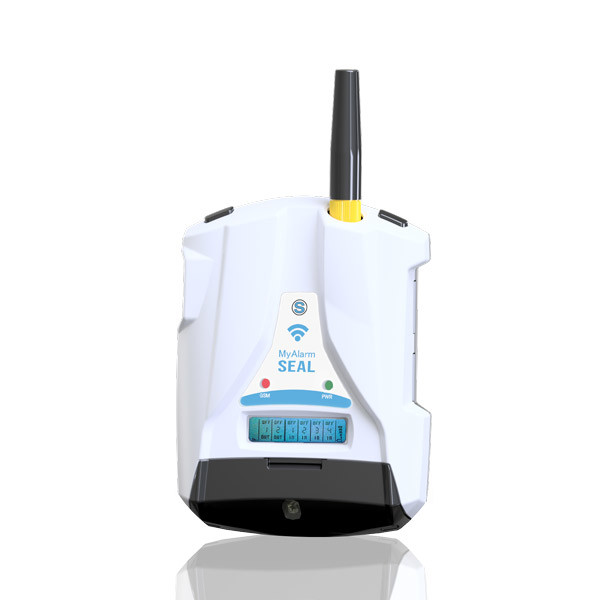

Seneca (Italy) - MyALARM SeAL: 2G Datalogger with built-in I/Os, logic functions, remote control and alarm management functions.

MyALARM SeAL is a data logger able to meet the growing needs of data acquisition, real-time analysis, integration with IT systems and control logic. In line with the new Industry 4.0 and Internet of Things productivity and communication models, MyALARM SeAL features a GSM/GPRS modem, a GPS receiver, 6 integrated I/O channels (4DI/counters/totalizers, 2AI), voice alarms/audio commands with DTMF tones and support for MQTT, Ftp, Smtp, Smtps, HTTP rest, https, SMS communication protocols, as well as compatibility with the Seneca Cloud BOX IoT/Cloud server.

This unit supports different types of SIM and is equipped with 8MB flash memory, microSD slot expandable up to 32 GB and real-time multitasking operating system. MyALARM SeAL also has an integrated UPS that allows an operating autonomy of up to 1 hour without primary power supply. The device offers open and flexible programming thanks to a dedicated control logic development environment (SEAL) and a data import/display tool (Log Factory). The combined use of this datalogger with the IoT/Cloud CloudBOX solution completes data management via HTML5 web pages with responsive supervisory dashboard/widgets. Available version with 2 DO on relay boards.

Technical data:

  • Power Supply: 6..15 Vdc
  • Power Consumption: 3,5 W
  • Protection degree: IP20
  • Rechargeable battery: Backup battery LiOn 3,7 V - 1.000 mAh
  • Digital inputs: Nr. 4 type Reed, contact, PNP, Pulscap 30 Hz
  • Analog inputs: Nr. 2 type Voltage (0..30 Vdc); current (0..20 mA); accuracy 0,1% f.s.
  • LED status signaling: Power Supply, GSM network, device status
  • Micro SD slot: push-push type for SD and SDHC card up to 32 GB (Micro SD in the bundle)
  • IoT / Cloud support: HTTP post, MQTT, CloudBOX compatibility
  • Datalogger: Measurements, alarms, events,  logging on Micro SD card and Flash Memory
  • Synchronous datalogger: Sample time, min 60 s
  • Asynchronous datalogger: Up to 8 trigger events with max input frequency 1Hz
  • Setting parameters: Project, Email, counters, timers, variables, I/O, thresholds, controls, and operations on bits
  • Commands: via SMS, free ringtones, DTMF, fast, time-delayed
  • Alarms: via SMS, voice, incremental, GSM non-communication
  • Characters codifications: UTF8/UNICODE support
  • Operating temperature: -20..+55°C (0..45°C suggested)
  • Built-in temperature sensor: NTC thermistor
  • SIM: Slot SIM push-push for mini SIM 15x25 mm
  • Display: LCD 128x32 dots with 39x8,6 mm visible area
  • Modem: GSM/GPRS Quad-band (850 / 900 / 1800 / 1900 MHz)
  • GPS receiver: up to 22 channels, sensitivity -165 dBm, typical fix time 32 s, accuracy up to 2,5 m
  • MicroUSB port: Reserved
  • MMCX connector: For external GPS antenna
  • SMA connector: For external GSM antenna
  • Connection: Spring clamp terminals, step 3,5 mm
  • Remote firmware update: SD card, micro USB, via remote external FTP server
  • Dimension: 80x105x30 mm
  • Mounting: DIN rail or wall mount
  • Weight: 150 g
  • Approvals: CE

For more information about this article from Seneca click here.
